Commercial Network Cabling in Toronto & GTA

Integrated Systems

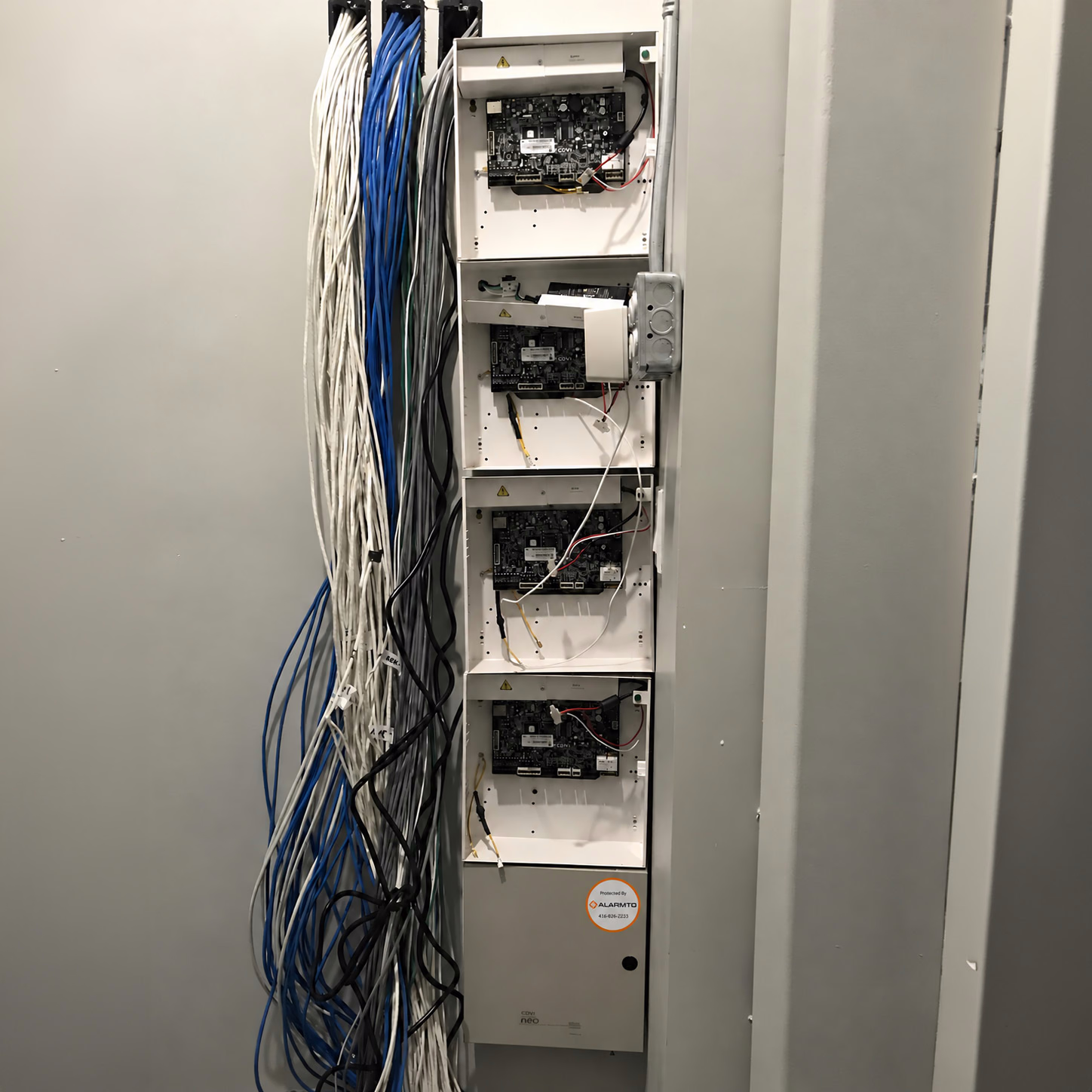

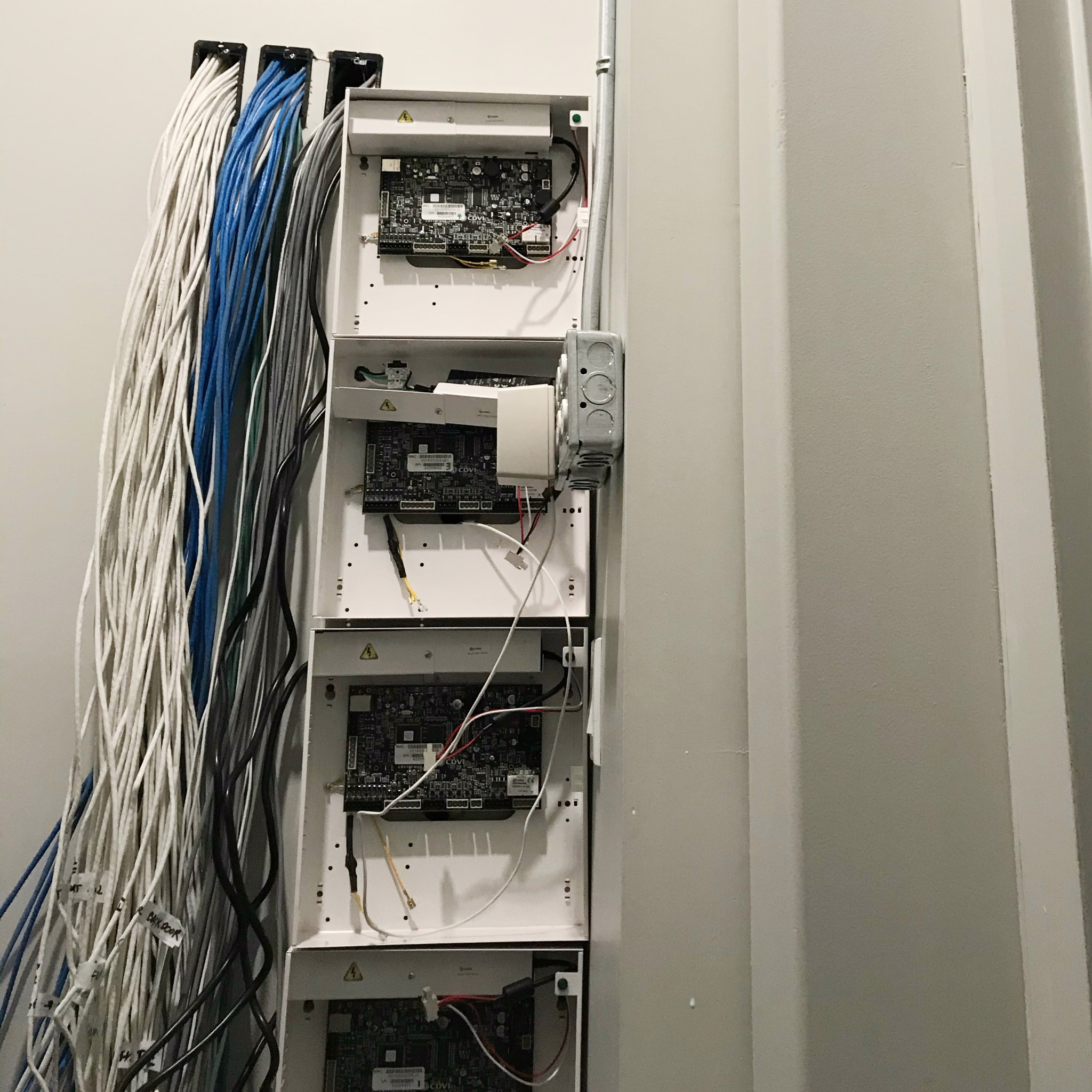

Cabling for Cameras, Access Control & Intercoms

We can plan network connections for compatible IP cameras, access control, intercoms, and Wi-Fi access points alongside the main data cabling.

Planning these connections together allows cable pathways, rack space, and connection points to be considered as part of the same installation.

Rack Organization

Network Racks, Patch Panels & Cable Management

The cabling needs to be organized at the network rack as well as at each device location.

We install and organize patch panels, rack connections, and cable management, with routes planned through suitable ceiling spaces, utility areas, trays, or other accessible pathways.

For existing networks, we work with the equipment and cabling already in place where possible. If existing cables need to be traced, labelled, or reorganized, we can assess that as part of the project.

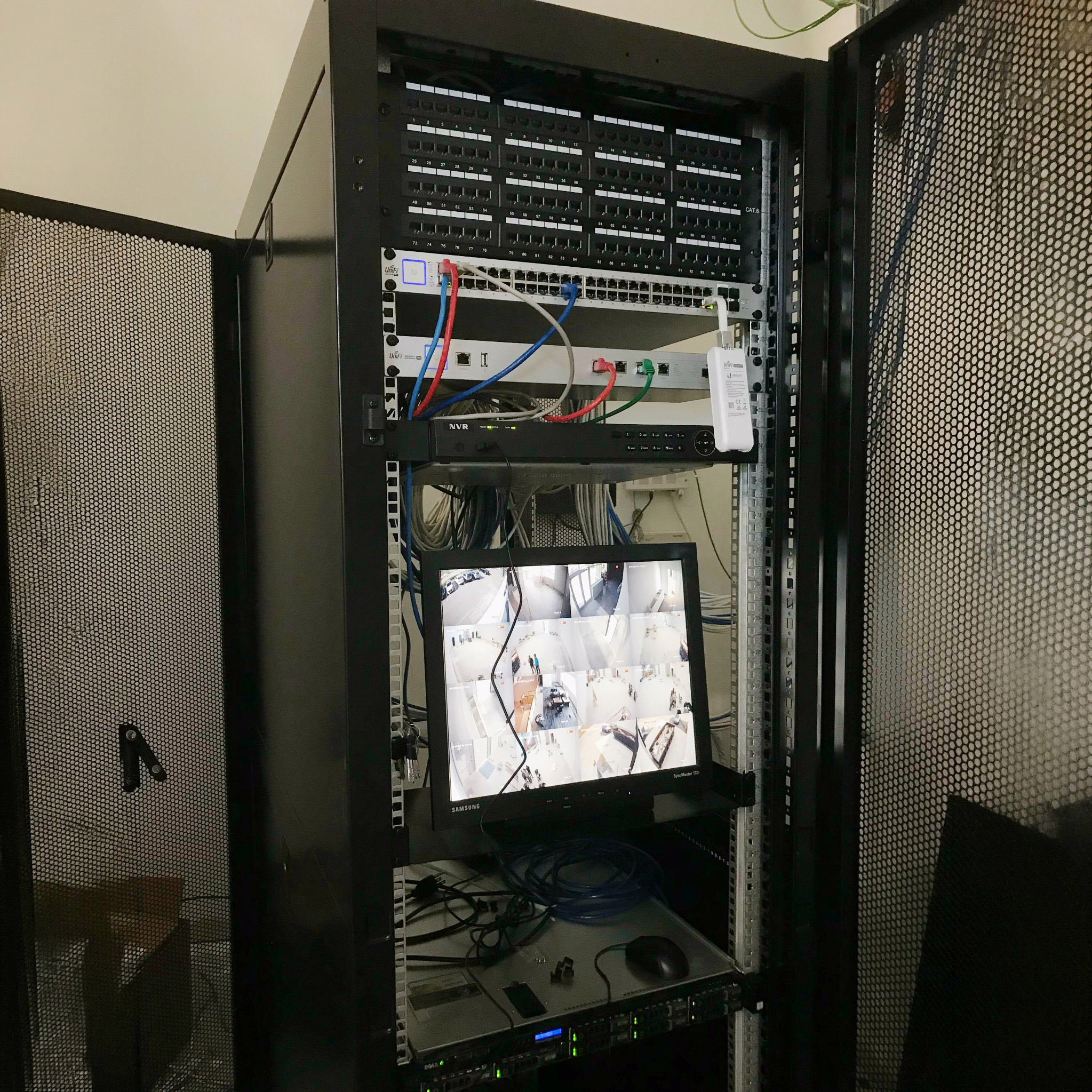

IT Rack Setup

IT Rack Installation & Setup

We install and organize IT racks for commercial network equipment, including switches, patch panels, routers, and other compatible hardware.

Rack setup is planned around equipment size, cable routing, ventilation, power access, and space for future expansion. We also organize and label connections to make network equipment easier to identify and maintain.

Cable Selection

Cat6 and Cat6a for Commercial Networks

Cat6 and Cat6a are common choices for commercial Ethernet installations.

Cat6 supports gigabit networking and can support 10 Gbps over shorter runs when the equipment and installation conditions allow it. Cat6a is designed for 10 Gbps Ethernet over runs up to 100 metres and generally requires more space because of its larger cable size.

Ethernet channel length is normally limited to 100 metres, including the permanent cable and patch cords. We select the cable based on the equipment, run length, pathway, and project requirements.

New or Existing

New Installations & Existing Networks

• New installations: We plan cable routes, outlet locations, rack positions, and connection points before installation begins.
• Existing networks: We also work with existing networks. If cabling is missing, damaged, difficult to identify, or poorly organized, we can assess what is already there and determine what should be added, replaced, traced, or reorganized.

For occupied properties, installation can also be planned around business hours and access to the work areas.

Testing & Handover

Testing, Labelling & Handover

Every installed cable run is tested after termination and labelled so the connection can be identified at the rack.

The testing and documentation provided depend on the project scope and requirements.
